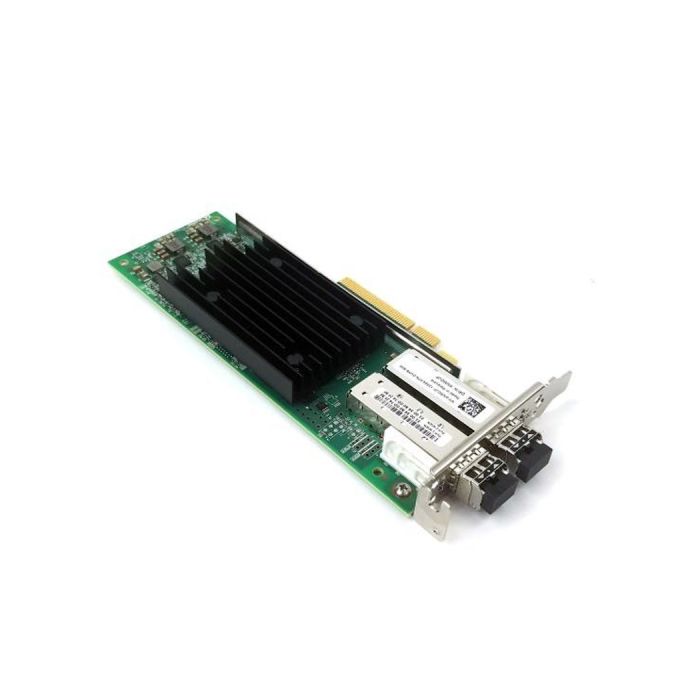

DELL QLE2772L-DELL Qlogic Enhanced 32GFC Dual Port PCIe 4.0 ×8 Fiber Channel Host Bus Adapter LP

DELL QLE2772L-DELL Qlogic Enhanced 32gfc Dual Port Pcie 4.0 ×8 Fiber Channel Host Bus Adapter.

Technical Specification:

Features

• Improve Scale Out Nvme Efficiencies By Delivering Concurrent Support For Fcp And Fc-nvme™
• Industry-leading Performance Of Up To 4 Million Iops And 25,600mbps Of Aggregate Throughput
• Port Isolation Design Delivers Deterministic And Scalable Performance On Each Port
• Marvell Storfusion™ Technology Accelerates Deployment, Simplifies Diagnostics, Enhances Reliability, And Optimizes Performance
• Improve Database Transactional Performance, Enable Faster Business Decisions With Up To 2x Faster Data Mining, And Host More Vms
• Supports Pcie 4.0 Systems
• Available In Single, Dual, And Quad-port Versions

Host Bus Interface Specifications

Bus Interface Pcie 4.0 ×8 (dual-port)
Host Interrupts Intx And Msi-x

Compliance

• Pcie Base Specification, Rev. 4.0
• Pcie Card Electromechanical Specification, Rev. 3.0
• Pcie Card Electromechanical Specification, Rev. 4.0 Draft 0.9
• Pci Bus Power Management Interface Specification, Rev. 1.2
• Pci Hot Plug Specification, Rev. 1.1

Fiber Channel Specifications

Throughput 6,400mbps Full Duplex Line Rate Per Port
Logins Support For 2,048 Concurrent Logins And 2,048 Active Exchanges Per Port
Port Virtualization Npiv

Compliance

• Scsi Fiber Channel Protocol-4 (fcp-4)
• Fiber Channel Tape (fc-tape) Profile
• Fiber Channel Generation Services-8 (fc-gs-8)
• Fiber Channel-physical Interface-5 (fc-pi5)
• Fiber Channel-physical Interface-6 (fc-pi6)
• Fiber Channel Link Services 4 (fc-ls-4)
• Fiber Channel Framing And Signalling-4 (fc-fs-4)
• Fiber Channel-nvme-2 (fc-nvme-2)

Form Factor Dual Port Low Profile Pcie Card (6.6 Inches × 2.731 Inches)

Condition : Refurbished.
Availability : In Stock .
Our Warranty : 90 Days.
