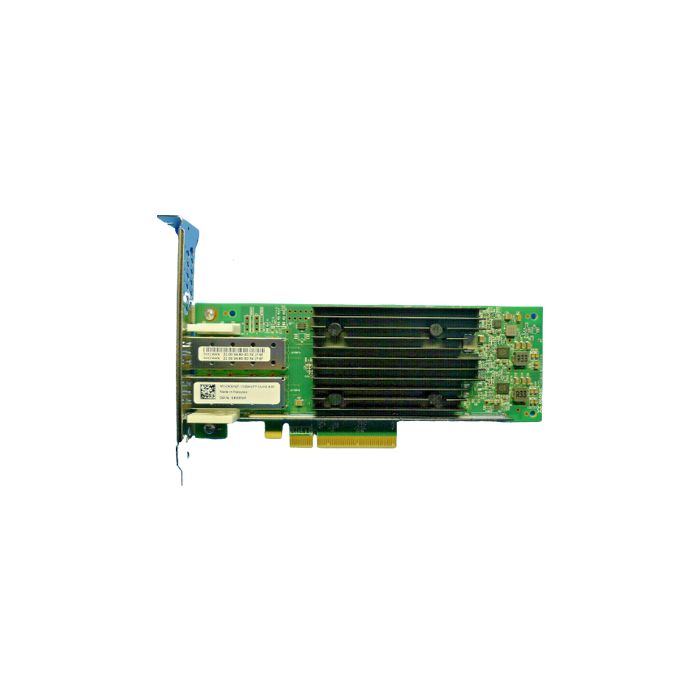

DELL QLE2772-DEL Qlogic Enhanced 32GFC Dual Port PCIe 4.0 ×8 Fibre Channel Host Bus Adapter ref

DELL QLE2772-DEL Qlogic Enhanced 32gfc Dual Port Pcie 4.0 ×8 Fibre Channel Host Bus Adapter.

Technical Specification :

Features

• Improve Scale Out Nvme Efficiencies By Delivering Concurrent Support For Fcp And Fc-nvme™

• Industry Leading Performance Of Up To 4 Million Iops And 25,600mbps Of Aggregate Throughput

• Port Isolation Design Delivers Deterministic And Scalable Performance On Each Port

• Marvell Storfusion™ Technology Accelerates Deployment, Simplifies Diagnostics, Enhances Reliability, And Optimizes Performance

• Improve Database Transactional Performance, Enable Faster Business Decisions With Up To 2x Faster Data Mining, And Host More Vms

• Supports Pcie 4.0 Systems

• Available In Single, Dual, And Quad-port Versions

Host Bus Interface Specifications

Bus Interface Pcie 4.0 ×8 (dual-port)

Host Interrupts Intx And Msi-x

Compliance

• Pcie Base Specification, Rev. 4.0

• Pcie Card Electromechanical Specification, Rev. 3.0

• Pcie Card Electromechanical Specification, Rev. 4.0 Draft 0.9

• Pci Bus Power Management Interface Specification, Rev. 1.2

• Pci Hot Plug Specification, Rev. 1.1

Fibre Channel Specifications

Throughput 6,400mbps Full Duplex Line Rate Per Port

Logins Support For 2,048 Concurrent Logins And 2,048 Active Exchanges Per Port

Port Virtualization Npiv

Compliance

• Scsi Fibre Channel Protocol-4 (fcp-4)

• Fibre Channel Tape (fc-tape) Profile

• Fibre Channel Generation Services-8 (fc-gs-8)

• Fibre Channel-physical Interface-5 (fc-pi5)

• Fibre Channel-physical Interface-6 (fc-pi6)

• Fibre Channel Link Services 4 (fc-ls-4)

• Fibre Channel Framing And Signalling-4 (fc-fs-4)

• Fibre Channel-nvme-2 (fc-nvme-2)

Form Factor Dual Port Low Profile Pcie Card (6.6 Inches × 2.731 Inches)

Condition : Refurbished.
Availability : In Stock .
Our Warranty : 90 Days.
