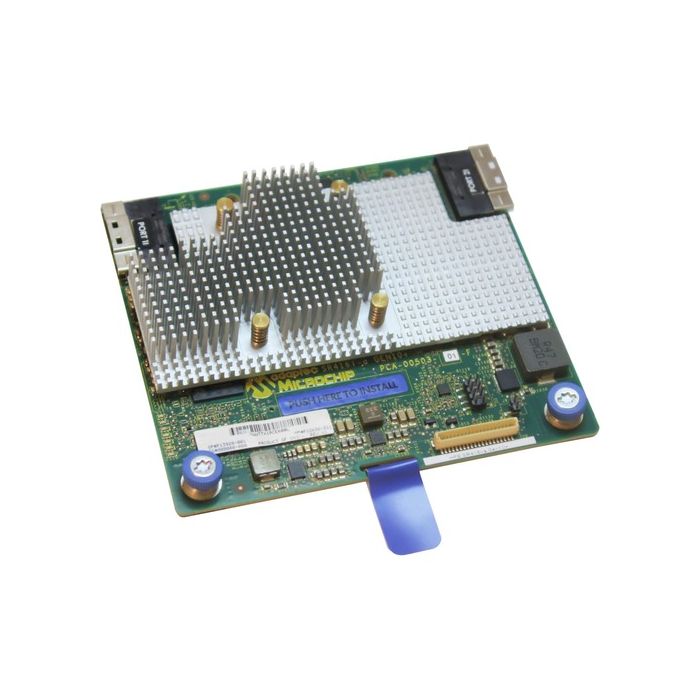

HPE P13928-001 Microchip SmartRAID SR416i-a SAS Controller

HPE Microchip 24gb Smartraid Sr416i-a X16 Lanes Sas Controller With 4gb Nvme Cache

Part Number: P13928-001
Manufacturer: HPE

Technical Specifications:

• Data Transfer Rate: Up To 24 Gb/s Of Bi-directional Throughput And Up To 3.5m Iops
• Supported Disk Enclosure: N/a
• Servers Supported: Refer To Microchip Smartraid Controllers For Gen10 Plus Controllers Quickspec For Detail.
• Cache: 4 Gb 72b Ddr4-3200 Mhz With Integrated Cache Protection Using HPE Smart Storage Battery Solution
• Certifications: Emc, Ce, Cns, Ct, Fc, Ic, Kc, Vc, Emc Doc, Ce, C-tick, Fcc, Kcc, Vcci, Bsmi, Ul, En 60950 And 62368, Au_nz Loa And Sdoc, Rohs, Tw And Eu
• Additional Features: See Microchip Smartraid Controllers For HPE Gen10 Plus Quickspecs For Additional Detail.
• Ports: 16 Internal Tri-mode Ports (slimsas Sff-9402 Connectors Supporting U.2 And U.3) Supporting Up To 16 Direct-connected Sas/sata/nvme Devices
• Raid Levels: Raid 0, 1, 1 Adm, 10, 10 Adm, 5, 6, 50, 60
• Form Factor: Type-a Flexible/modular Controller (does Not Occupy A Pcie Expansion Slot)
• Detailed Product Description: Microchip Smartraid Sr416i-a X16 Lanes 4 Gb Cache Nvme/sas 24 G Controller For HPE Gen10 Plus
• Weight (imperial): 4.125 Oz
• Weight (metric): 120 G
• Product Dimensions (imperial): 3.9 H X 4.4 L
• Product Dimensions (metric): 99.1 Mm X 111.8 Mm
• Secure Encrypted Drives: Not Supported At This Time
• Storage Protocol: 6 G Sata, 6 G/12 G/24 G Sas, Gen 3/gen4 Nvme
• Storage Management: Smart Storage Administrator (ssa)

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days.
