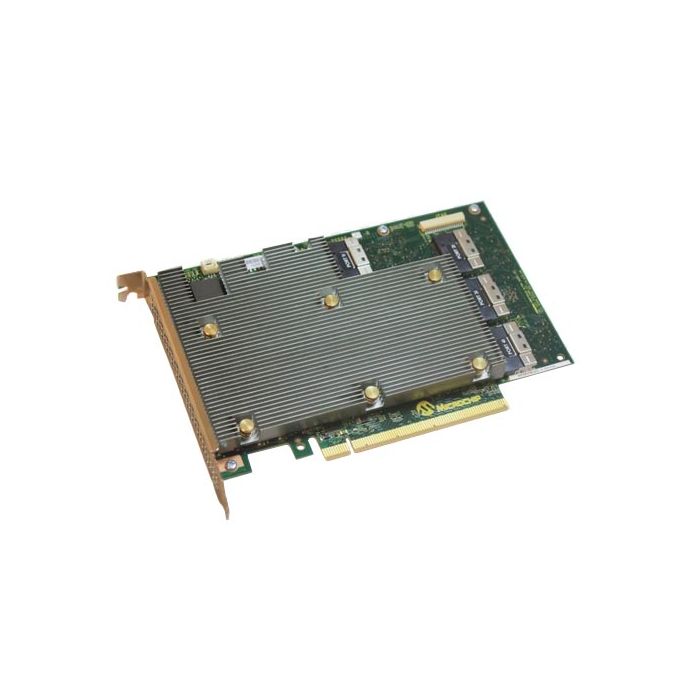

HPE P04224-001 Microchip SmartRAID SR932i-p SAS Controller

HPE P04224-001 Microchip Smartraid Sr932i-p X32 Lanes 8gb Wide Cache Nvme/sas 24g Controller For Gen10 Plus

Overview The Smartraid Sr932i-p Gen10 Plus Is The Industrys Most Versatile, Highest Performing And Secure Pcie Raid Adapter For Applications Ranging From Smb To Enterprise And Mission-critical Applications. The Sr932i-p Gen10+ Adapter Is Built Around The Trusted Smartraid (sr) Storage Stack And Offers 16-lanes Of Pcie Gen 4 Host Bandwidth With 32 Tri-mode (sas/sata/nvme)
lanes Supporting Up To 32 Direct-connected Storage Devices. The Sr932i-p Gen10 Plus Adapter Is Tailored For Maximum Performance For Raid And Hba Applications, Enabling Up To 46gb/s Bi-directional Throughput And Up To 3.5m Iops, Giving The
adapter The Necessary Capabilities And Flexibility To Meet The Needs Of The Most Demanding Applications

Technical Information:

Form Factor: Pcie Plug-in Controller Fh ½ Length Pci-e Card

Internal Sas Lanes: 32 Internal Sas/sata/nvme (tri-mode), (slimsas Sff-9402 Connectors Supporting U.2 And U.3)supporting Up To 32 Direct-connected Sas/sata/nvme Devices.

Host Interface: 16-lane Pcie Gen 4

Data Transfer Rate: Up To 46gb/s Bi-directional Throughput And Up To 3.5m Iops 8gb 144b Wide Cache Ddr4-3200 Mhz With Integrated Cache Protection Using Smart Storage Battery Solution.

Read Ahead Caching: Yes

Write-back Caching: Yes

Storage Protocol: 6g Sata, 6g/12g/24g Sas, Gen

Storage Management Smart Storage Administrator (ssa)

I/o Slot: X16 Link

Maximum Physical Drives (up To) : 238

Maximum Physical Drives (up To) : 238

Raid: 0/1/5/6/10/50/60/1 Tp/10 Tp

Mixed Mode: Raid & Hba

Boot Mode: Legacy And Uefi

Ssd Accelerator : Smart Path

Compatibility: HPE Proliant Dl360 Gen10 Plus, HPE Proliant Dl380 Gen10 Plus, HPE Proliant Dl325 Gen10 Plus V2, HPE Proliant Dl345 Gen10 Plus, HPE Proliant Dl365 Gen10 Plus, HPE Proliant Dl385 Gen10 Plus V2, HPE Apollo 4200 Gen10 Plus.

Operating System Support:
