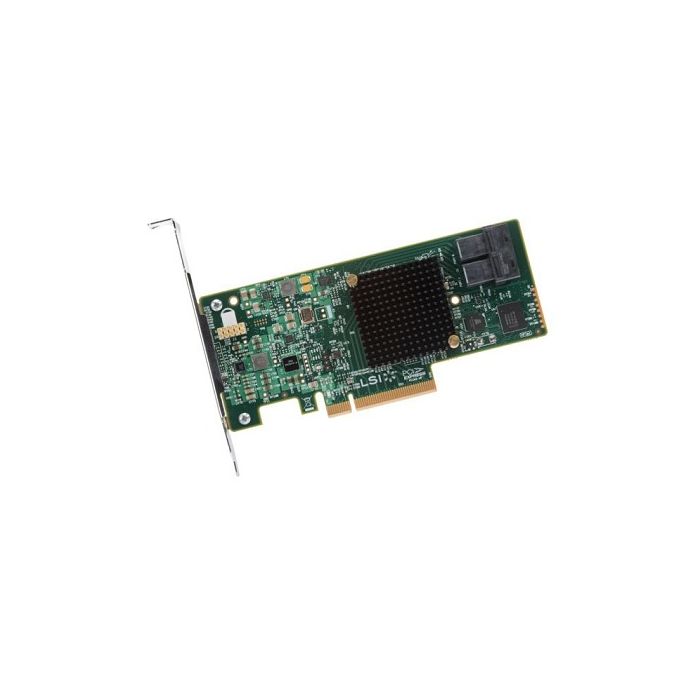

Broadcom LSI00407 9341-8i MegaRAID SAS 12GB 8Port PC-E 3.0 SAS SATA RAID Controller
Part Number:
LSI00407
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Non-raid (jbod Mode): 64
Raid 0: 32 Per Volume
Raid 1: 2 Per Volume Plus Hot Spare
Raid 5: 32 Per Volume
Raid 10: 32 Per Volume
Raid 50: 32 Per Volume
Host Bus Type 8-lane, 5 Gt/s Pci Express 3.0 Compliant
Data Transfer Rates Up To 12gb/s Per Port
Key Raid Data Protection Features
Raid Levels 0, 1, 5, 10, 50 And Jbod Mode
Online Capacity Expansion (oce)
Online Raid Level Migration (rlm)
Auto Resume After Loss Of System Power During Array Rebuild Or Rlm
Single Controller Multipathing (load Balancing)
Drive Hot Plug Support
Drive Roaming
Selectable Logical Drive As Boot Drive
Virtual Disk (vd) Consistency Check
Fast Initialization For Quick Array Setup
• Staggered Disk Spin Up
Hot Spare Support (up To 8)
– Global, Dedicated (copy Back), Enclosure Affinity And Emergency Sata Support
Automatic Rebuild Support
Safestore Encryption Services For Sed Hdds
Shielded State Drive Diagnostic Technology
Patrol Read Media Scan And Repair
Online Hdd Firmware Update
Error Recovery Support
Sas Tcq Support
Sata Ncq Support
Support For Native 4k Hdds
Non-disk Device Support
>2tb Logical Drive Support
Soft Bad Block Management
Ddf-compliant Configuration On Disk
Foreign Configuration Import
S.m.a.r.t. Support
Ses (inband) & Sgpio (sideband) Management
Megaraid Management Suite
Megaraid Storage Manager™
– Now With Single Login For Domain Admin
Storcli (command-line Interface)
Ctrl-r (bios Configuration Utility)
Hii (uefi Human Interface Infrastructure)
Environments
Operating 0°c To 70°c
5 To 90% Non-condensing
Storage -45°c To 105°c
5 To 90% Non-condensing
Pci Card Type 3.3v Add-in Card
Pci Voltage +12v +/-8%
Pci Power 13.0 W (normal), 19.04 W (max)
Pci Modes Bus Master Dma
Led Indicators Internal Activity/fault Per X4 Port – Heartbeat
Mtbf >2,800,000 Hours
Os Support Extensive Support Includes Microsoft® Windows® Server 2012/vista/2008/server 2003, Linux®, Solaris™ (x86), Freebsd®,
vmware® And More.
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
BROADCOM 9341-8i Megaraid Sas 12gb 8port Pc-e 3.0 Sas Sata Raid Controller.
Key Features
Physical Dimensions 2.6” X 6.0”
Connectors Two, X4, Sff-8643 Mini-sas Hd Horizontal Connector Placement
Max Number Of Physical Devices
Host Bus Type 8-lane, 5 Gt/s Pci Express 3.0 Compliant
Data Transfer Rates Up To 12gb/s Per Port
Key Raid Data Protection Features
– Global, Dedicated (copy Back), Enclosure Affinity And Emergency Sata Support
Megaraid Management Suite
– Now With Single Login For Domain Admin
Environments
Pci Card Type 3.3v Add-in Card
Pci Voltage +12v +/-8%
Pci Power 13.0 W (normal), 19.04 W (max)
Pci Modes Bus Master Dma
Led Indicators Internal Activity/fault Per X4 Port – Heartbeat
Mtbf >2,800,000 Hours
Os Support Extensive Support Includes Microsoft® Windows® Server 2012/vista/2008/server 2003, Linux®, Solaris™ (x86), Freebsd®,
vmware® And More.
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | RAID CONTROLLER |
|---|---|
| Condition | Refurbished |
| Manufacturer | BROADCOM |
