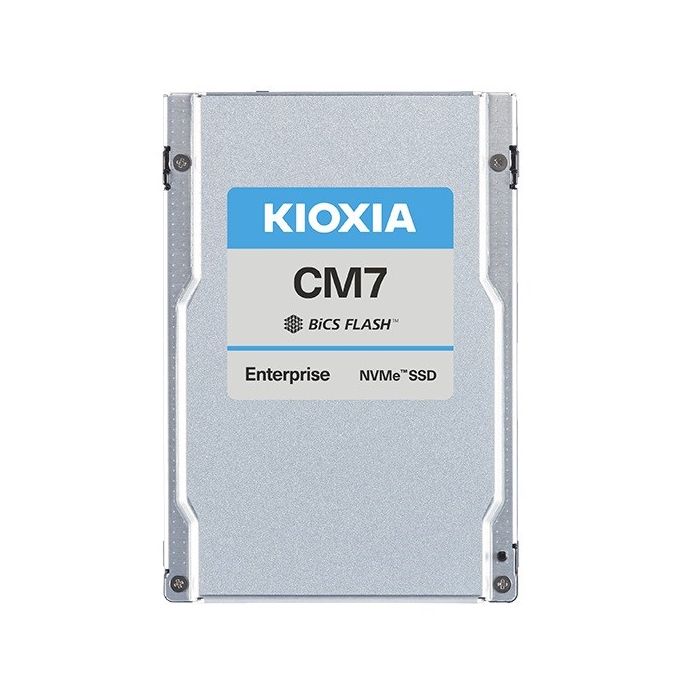

KIOXIA KCMYXVUG1T60 1.6TB NVMe 2.0 2.5inch 15mm CM7-V 3DWPD Enterprise Ssd

Key Features :
Pcie® 5.0, Nvme™ 2.0 Specification Compliant
Open Compute Project Datacenter Nvme™ Ssd Specification V2.0 Support (not All Requirements)
Form Factor: 2.5-inch, 15 Mm Thickness
Proprietary KIOXIA Architecture: Controller, Firmware And 112-layer Bics Flash™ 3d Tlc
Sff-ta-1001 Conformant (u.3)
Dual-port Design For High Availability Applications
High Performance With Lower Power Consumption
Power Loss Protection (plp) And End-to-end Data Protection
Suited For 24x7 Enterprise Workloads
Security Options: Sie

Basic Specifications:
Form Factor : 2.5-inch, 15mm Thickness
Lnterface : Pcie® 5.0, Nvme™ 2.0
Maximum Interface Speed : 128 Gt/s (pcie® Gen5 Single X4, Dual X2)
Flash Memory Type : Bics Flash™ Tlc

Performance In Single Port (1x4) Mode (up To) :
Sustained 128 Kib Sequential Read : 14,000 Mb/s
Sustained 128 Kib Sequential : Write 3,500 Mb/s
Sustained 4 Kib Random Read : 2,000k Iops
Sustained 4 Kib Random Write : 310k Iops

Power Requirements
Supply Voltage : 12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (active) : 22 W Typ.
Power Consumption (ready) : 5 W Typ.

Reliability :
Mttf : 2,500,000 Hours
Dwpd : 3

Dimensions :
Thickness : 15.0 Mm +0 / -0.5 Mm
Width : 69.85 Mm ± 0.25 Mm
Length : 100.45 Mm Max
Weight : 130 G Max

Environmental :
Temperature (operating) : 0 °c To 73 °c 0 °c To 76 °c
Temperature (non-operating) : -40 °c To 85 °c
Humidity (operating) : 5 % To 95 % R.h.
Vibration (operating) : 21.27 M/s2 { 2.17 Grms } ( 5 To 800 Hz )
Shock (operating) : 9.8 Km/s2 { 1,000 G } ( 0.5 Ms )

Condition : Brand New
Availability : In Stock
Our Warranty : 90 Days
