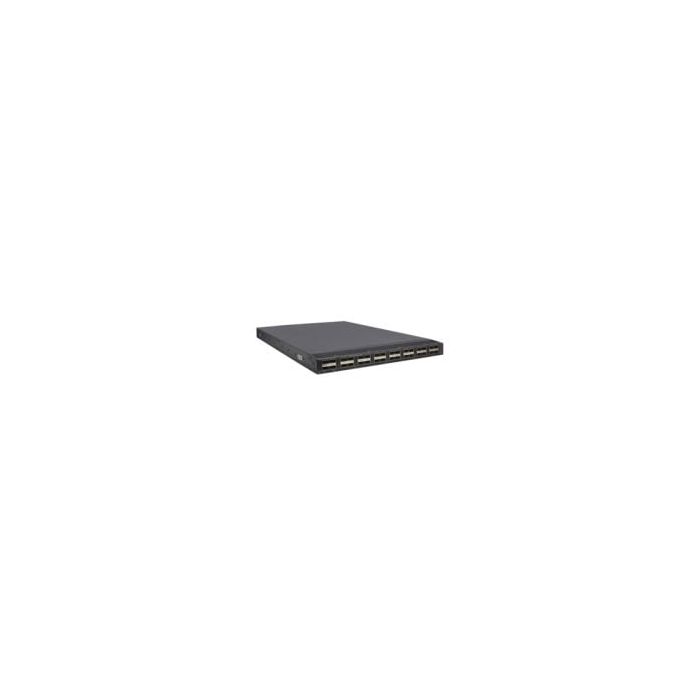

Hewlett Packard Enterprise FlexFabric 5940 32QSFP+ Managed network switch L2/L3 None 1U Black
Part #:
JH396A
Availability:
In Stock
Price:
Excl VAT:
AED
8,900.00
Incl VAT:
AED
9,345.00
The HPE FlexFabric 5940 Switch Series is a family of high-performance and low-latency 10GbE and 40GbE top-of-rack (ToR) data center switches. The 5940 Switch includes 100G uplink technology which is part of the HPE FlexFabric data center solution and is a cornerstone of the FlexNetwork architecture. The 5940 Switch is suited for deployment at the aggregation or server access layer of large enterprise data centers or at the core layer of medium-sized enterprises. It is optimized for high-performance server connectivity, convergence of Ethernet and storage traffic, and virtual environments.
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed network switch |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| QSFP+ module slots quantity | 32 |
| Basic switching RJ-45 Ethernet ports type | None |
| Gigabit Ethernet (copper) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Networking | |
| Networking standards | IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3ah,IEEE 802.3x |
| 10G support | Yes |
| Data transmission | |
| Throughput | 1904 Mpps |
| Latency (10 Gbps) | 1 µs |
| MAC address table | 288000 entries |
| Switching capacity | 2560 Gbit/s |
| Optical fiber | |
| Fiber optic connector | QSFP+ |
| Fiber ethernet cabling technology | 40GBASE-LR4,40GBASE-SR4 |
| Protocols | |
| Management protocols | SNMP, Telnet, FTP |
| Design | |
| Form factor | 1U |
| Colour of product | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 9 |
| Packet buffer memory | 16 MB |
| Stackable | Yes |
| Internal memory | 4096 MB |
| Flash memory | 1024 MB |
| Power | |
| Power supply included | No |
| AC input voltage | 90-264 |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 409 W |
| Input voltage | -40 - -75 |
| Technical details | |
| Physical stacking (units) | 9 |
| Form factor | 1U |
| Colour of product | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Memory | |
| Packet buffer memory | 16 MB |
| Internal memory | 4096 MB |
| Flash memory | 1024 MB |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 887 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 660 mm |
| Height | 43.6 mm |
| Weight | 11 kg |
| Packaging data | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Other features | |
| Input voltage | -40 - -75 |
| SKU | JH396A |
|---|---|
| Manufacturer | HP |
