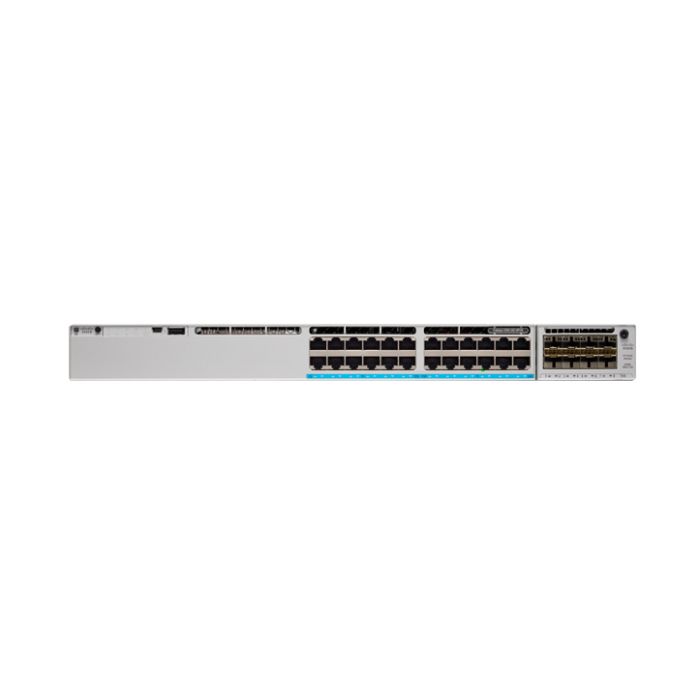

Cisco Catalyst C9300-24U-A network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking | |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ap,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Data transmission | |
| Jumbo frames | 9198 |
| MAC address table | 32000 entries |
| Switching capacity | 640 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 154.76 Mpps |
| Number of VLANs | 4000 |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Multicast features | |
| Multicast support | Yes |
| Security | |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Design | |
| Product colour | Grey |
| Rack mounting | Yes |
| Technical details | |
| Product colour | Grey |
| Rack mounting | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 445 mm |
| Height | 44 mm |
| SKU | C9300-24U-A |
|---|
