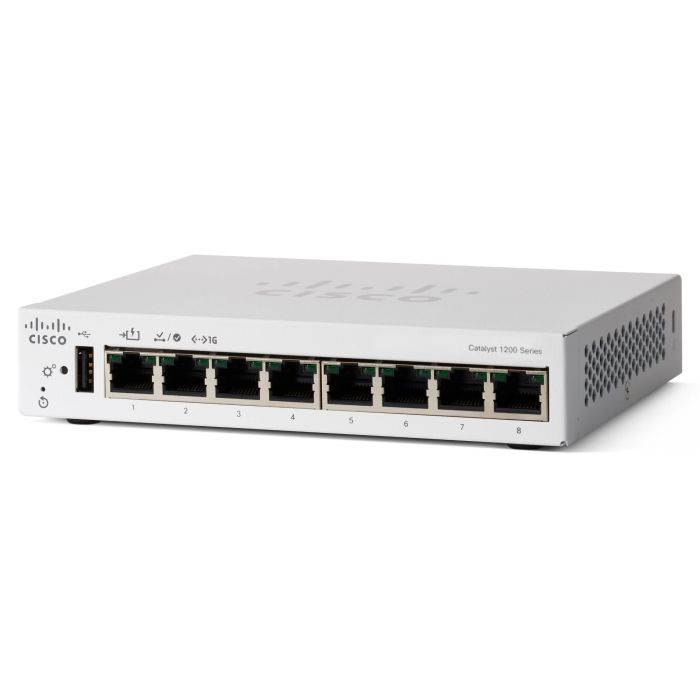

Cisco Catalyst 1200-8T-D Smart Switch, 8 Port GE, Ext PS, Desktop, Limited Lifetime Protection
Part #:
C1200-8T-D
Availability:
In Stock
The Cisco Catalyst 1200-8T-D switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Broadcast storm control | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Product colour | White |
| Processor frequency | 1400 MHz |
| Housing material | Metal |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Design | |
| Reset button | Yes |
| Country of origin | China |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Metal |
| Performance | |
| Processor frequency | 1400 MHz |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Power | |
| Power plug type | Type C |
| Power supply included | Yes |
| Power source | AC |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 141.5 mm |
| Depth | 176.8 mm |
| Height | 30 mm |
| Packaging data | |
| Package width | 213.9 mm |
| Package depth | 307.8 mm |
| Package height | 54.9 mm |
| Package weight | 1.07 kg |
| Other features | |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Ethernet LAN data rates | 1000 Mbit/s |
| Country of origin | China |
| SKU | C1200-8T-D |
|---|---|
| Manufacturer | Cisco |
