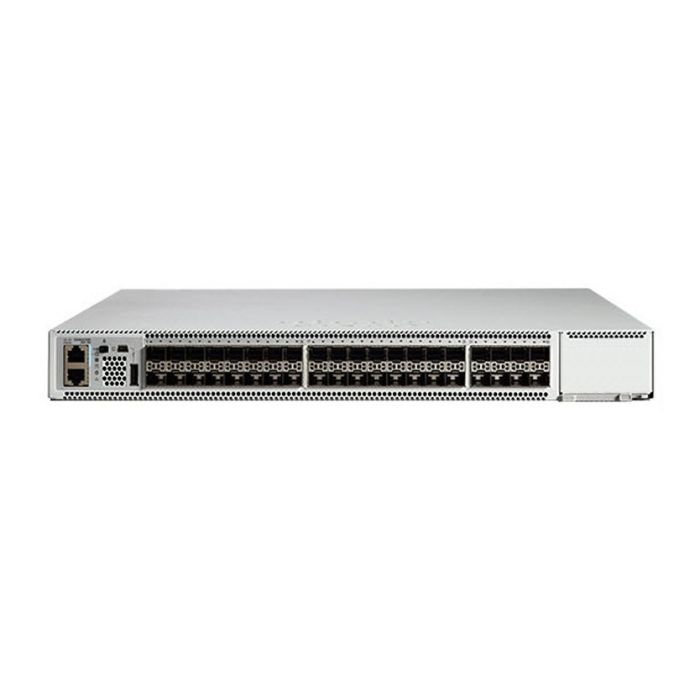

Cisco C9500-40X-A network switch Managed L2/L3 None Grey 1U
Part #:
C9500-40X-A
Availability:
In Stock
Price:
Excl VAT:
AED
88,502.00
Incl VAT:
AED
92,927.10
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
| Management features | |
|---|---|
| Switch type | Managed |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | None |
| Installed SFP+ modules quantity | 40 |
| Networking | |
| Full duplex | Yes |
| VLAN support | Yes |
| IGMP snooping | Yes |
| 10G support | Yes |
| IPv6 multicast entries | 48000 |
| IPv6 FIB entries | 32000 |
| IPv4 multicast entries | 48000 |
| IPv4 FIB entries | 64000 |
| IGMP entries | 16000 |
| Access Control List (ACL) IPv6 entries | 18000 |
| Access Control List (ACL) IPv4 entries | 18000 |
| Data transmission | |
| Jumbo frames | 9198 |
| Throughput | 720 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 960 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN,Policy-based VLAN |
| Multicast features | |
| Multicast support | Yes |
| IPv6 multicast entries | 48000 |
| IPv4 multicast entries | 48000 |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 32000 |
| IPv4 FIB entries | 64000 |
| Access Control List (ACL) IPv6 entries | 18000 |
| Access Control List (ACL) IPv4 entries | 18000 |
| Security | |
| Security algorithms | 256-bit AES |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 16000 |
| DHCP features | DHCP snooping |
| Protocols | |
| Management protocols | IGMP |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 2400 MHz |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 180640 h |
| Internal memory | 16000 MB |
| Flash memory | 16000 MB |
| Built-in processor | Yes |
| Weight & dimensions | |
| Dimensions (W x D x H) (imperial) | 444.5 x 546.6 x 43.9 mm (17.5 x 21.5 x 1.73") |
| Power | |
| Power consumption (max) | 850 W |
| Output voltage | 12 V |
| Output current | 3 A |
| Power supply included | Yes |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Processor frequency | 2400 MHz |
| Mean time between failures (MTBF) | 180640 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | DRAM |
| Internal memory | 16000 MB |
| Flash memory | 16000 MB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 1828 m |
| Other features | |
| Dimensions (W x D x H) (imperial) | 444.5 x 546.6 x 43.9 mm (17.5 x 21.5 x 1.73") |
| SKU | C9500-40X-A |
|---|
