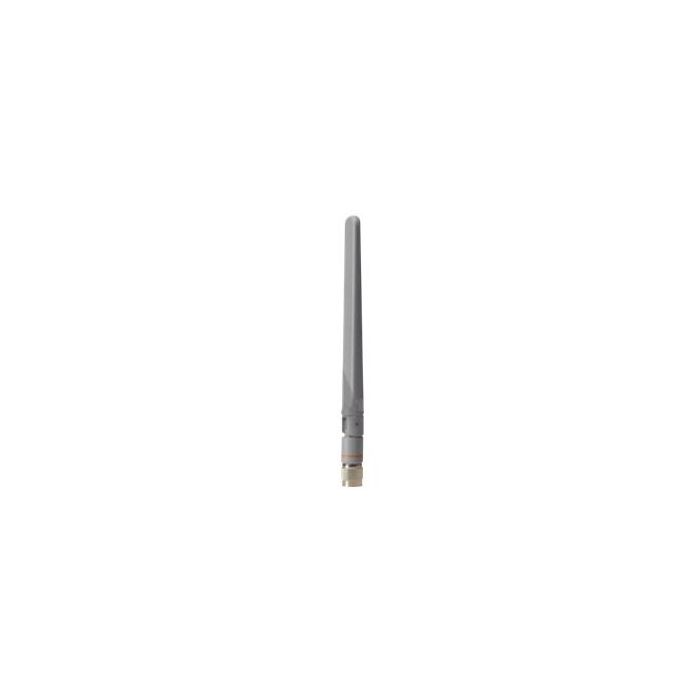

Cisco AIR-ANT2524DB-R network antenna RP-TNC 4 dBi
Part #:
AIR-ANT2524DB-R
Availability:
In Stock
Price:
Excl VAT:
AED
288.00
Incl VAT:
AED
302.40
The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint.
| Performance | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 2.4/5 GHz |
| Impedance | 50 Ω |
| Antenna gain (5 GHz) | 4 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Features | |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 2.4/5 GHz |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Polarization | Dual polarization |
| Impedance | 50 Ω |
| Product colour | Black |
| Antenna gain (5 GHz) | 4 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Antenna connector type | RP-TNC |
| Technical details | |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 2.4/5 GHz |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Polarization | Dual polarization |
| Operating temperature (T-T) | -4 - 140 °F |
| Impedance | 50 Ω |
| Antenna gain (5 GHz) | 4 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Antenna connector type | RP-TNC |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Weight | 40 g |
| Width | 21 mm |
| Height | 168.5 mm |
| Other features | |
| Operating temperature (T-T) | -4 - 140 °F |
| SKU | AIR-ANT2524DB-R |
|---|---|
| Manufacturer | Cisco |
