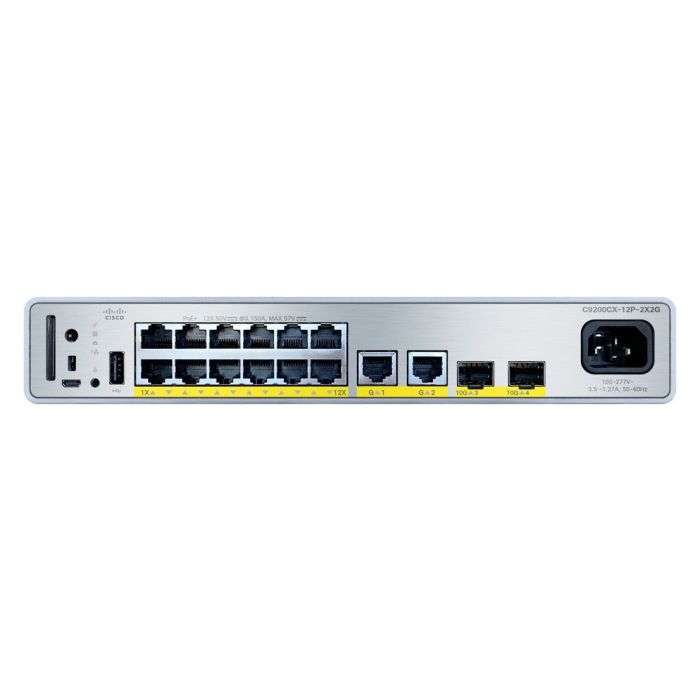

Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Essentials
Part #:
C9200CX-12P-2XGH-E
Availability:
In Stock
Price:
Excl VAT:
AED
9,633.00
Incl VAT:
AED
10,114.65
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Network | |
| IGMP snooping | Yes |
| IGMP entries | 1000 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Data transmission | |
| Multicast MAC address table | 1000 entries |
| MAC address table | 32000 entries |
| Switching capacity | 34 Gbit/s |
| Performance | |
| Stackable | Yes |
| Mean time between failures (MTBF) | 553140 h |
| Technical details | |
| Stackable | Yes |
| Mean time between failures (MTBF) | 553140 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 14 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Compatible memory cards | SD |
| USB 2.0 ports quantity | 1 |
| Security | |
| Security algorithms | 256-bit AES |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 1000 |
| Multicast features | |
| Multicast MAC address table | 1000 entries |
| Multicast support | Yes |
| Design | |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 269 mm |
| Depth | 244 mm |
| Height | 44 mm |
| Weight | 2.99 kg |
| SKU | C9200CX-12P-2XGH-E |
|---|---|
| Manufacturer | Cisco |
