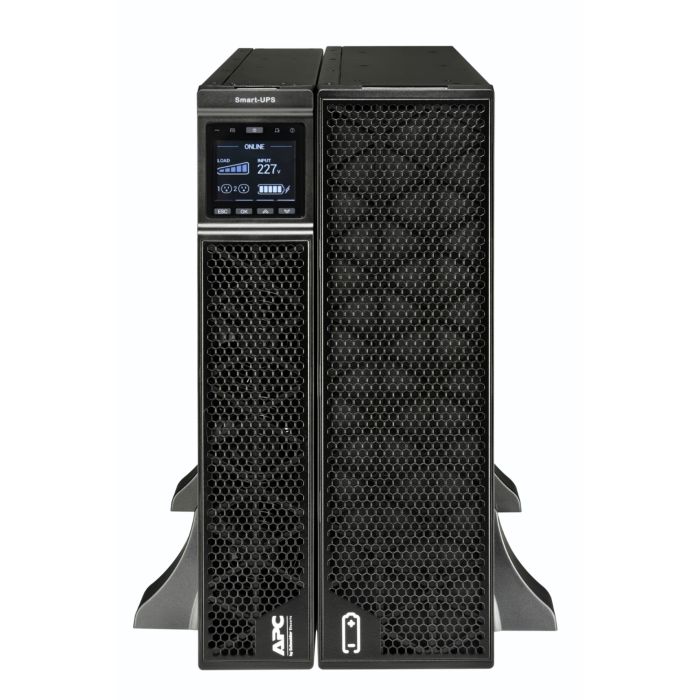

APC Smart-UPS On-Line, 10kVA/10kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit
Part #:
SRTG10KXLI
Availability:
In Stock
Price:
Excl VAT:
AED
14,918.00
Incl VAT:
AED
15,663.90
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 2x IEC 320 C13, 1x IEC 320 C19 and Hard wire 3-wire (H+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters.
| Power | |
|---|---|
| Output power | 10000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Output power capacity | 10 kVA |
| ECO mode | Yes |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| Output power | 10000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 10 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery voltage | 96 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2011.68 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Weight & dimensions | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 414 mm |
| Weight | 81.1 kg |
| Width | 440 mm |
| Package weight | 83.1 kg |
| Height | 217 mm |
| Depth | 620 mm |
| Packaging data | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 414 mm |
| Package weight | 83.1 kg |
| SKU | SRTG10KXLI |
|---|---|
| Manufacturer | APC |
