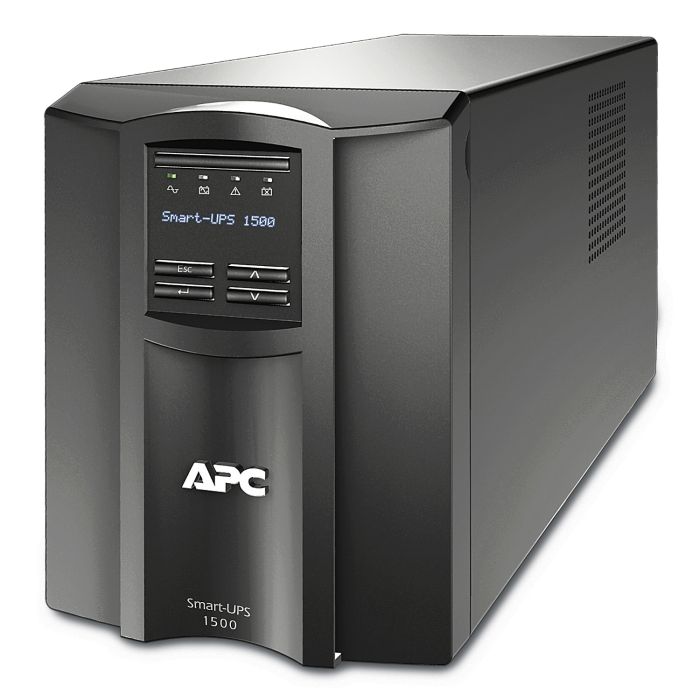

APC SMART-UPS 1500 LCD - UPS - 1 KW - 1500 VA
Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter provides actual kilowatt hours of usage for energy conscious users. Intuitive LCD interface provides clear and accurate information with the ability to configure the UPS locally with easy to use navigation keys. Single switched outlet group may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on / off and non-critical load shedding. Pure sine wave output on battery simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Cold-start capable provides temporary battery power when the utility power is out.
Device Type | UPS - external |
Weight | 24.1 kg |
Input Voltage | AC 230 V |
Output Voltage | AC 220/230/240 V ± 5% |
Power Capacity | 1 kW / 1500 VA |
Input Connectors | Power IEC 60320 C14 |
Output connectors | 8 x power IEC 60320 C13 |
Battery | Lead Acid |
Batteries Qty | 1 |
Run Time (Up To) | 6.7 min at full load |
Networking | RS-232, USB |
Dimensions (WxDxH) | 17.1 cm x 43.9 cm x 21.9 cm |
Manufacturer Warranty | 3 years warranty |
GENERAL | |
---|---|
Device Type | UPS - external |
Colour | Black |
NETWORKING | |
---|---|
Remote Management Interface | RS-232, USB |
DIMENSIONS & WEIGHT | |
---|---|
Width | 17.1 cm |
Depth | 43.9 cm |
Height | 21.9 cm |
Weight | 24.1 kg |
POWER DEVICE | |
---|---|
UPS Technology | Line interactive |
Input Voltage | AC 230 V |
Input Voltage Range | AC 160 - 286 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Frequency Provided | 47 - 53 / 57-63 Hz |
Frequency Required | 50/60 Hz |
Input Connectors | Power IEC 60320 C14 |
Power Output Connectors Details | 8 x power IEC 60320 C13 |
Output Voltage | AC 220/230/240 V ± 5% - 47 - 53 / 57-63 Hz |
Power Capacity | 1 kW / 1500 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Surge Energy Rating | 459 Joules |
Circuit Protection | Circuit breaker |
BATTERY | |
---|---|
Quantity | 1 |
Technology | Lead Acid |
Run Time (Up To) | 6.7 min at full load 23.9 min at half load |
Recharge Time | 3 hours |
MISCELLANEOUS | |
---|---|
Cables Included | Serial cable - external USB cable - external Power cable - external - 1.8 m |
Features | Audible alarm, LCD display, cold-start function |
Compliant Standards | C-Tick, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1, REACH |
ENVIRONMENTAL PARAMETERS | |
---|---|
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 - 95% |
Sound Emission | 45 dBA |
EXPANSION / CONNECTIVITY | |
---|---|
Interfaces | 1 x management (RS-232) 1 x management (USB) |
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
MANUFACTURER WARRANTY | |
---|---|
Service & Support | Limited warranty - 3 years Limited warranty - batteries - 2 years |
SOFTWARE / SYSTEM REQUIREMENTS | |
---|---|
Software Included | Drivers & Utilities |
DIMENSIONS & WEIGHT (SHIPPING) | |
---|---|
Shipping Width | 32.8 cm |
Shipping Depth | 59.5 cm |
Shipping Height | 37.6 cm |
Shipping Weight | 27.2 kg |
SKU | SMT1500I |
---|---|
Manufacturer | APC |
