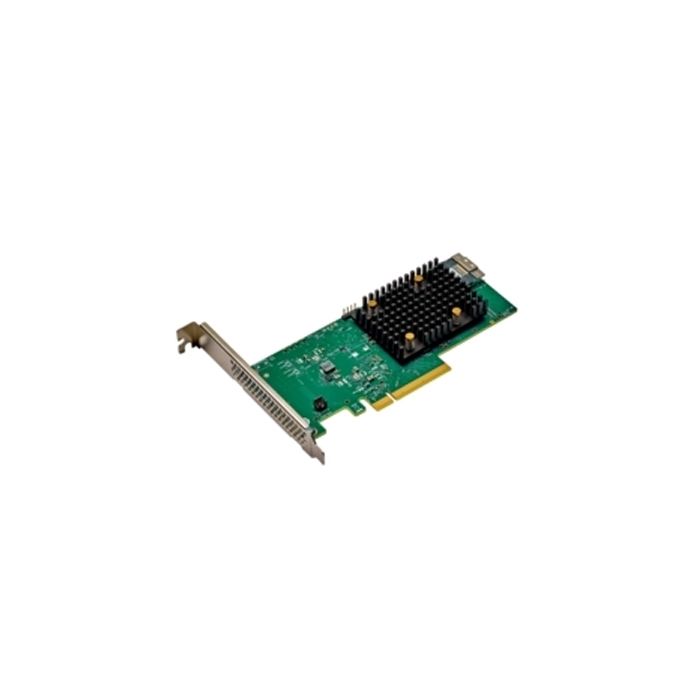

Broadcom 9540-8I MegaRAID 8 Port 12GB/s SAS/SATA/PCIe (NVME) Tri-Mode RAID Controller
Part Number:
9540-8I
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Jbod Mode With R0/1/10 And Jbod For Sds Environments
Online Capacity Expansion (oce)
Auto Resume After Loss Of System Power During Array Rebuild Or Oce
Single Controller Multipathing
Load Balancing
Configurable Stripe Size Up To 1 Mb
Fast Initialization For Quick Array Setup
Check Consistency For Background Data Integrity
Ssd Support With Ssd Guard™ Technology
Patrol Read For Media Scanning And Repairing
240 Virtual Drive Support (32 For The 9540)
Ddf-compliant Configuration On Disk (cod)
S.m.a.r.t. Support
global And Dedicated Hot Spare With Revertible Hot Spare Support:
- Automatic Rebuild
- Enclosure Affinity
- Emergency Sata Hot Spare For Sas Arrays
Enclosure Management:
- Ses (inband)
- Sgpio (sideband)
- Universal Backplane Management (ubm) Ready
Databolt Bandwidth Optimizer Technology Support For Compatible Expander-based Enclosures
Shield State Drive Diagnostic Technology
Megaraid Safestore Software For Sed Key Management
Management Utilities:
Lsi Storage Authority (lsa)
Storcli (command-line Interface)
Hii (uefi Human Interface Infrastructure)
Os Support: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.
Dimensions: 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Typical Power: 6.0w
Operating Conditions:
Operating: 0°c To 55°c, 5% To 90% Non-condensing
Storage: -45°c To 105°c, 5% To 95% Non-condensing
Operating Voltage 12v ±8%, 3.3v ±9%
Mtbf (calculated) >3,000,000 Hours At 40°c
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
BROADCOM 9540-8I Megaraid 8 Port 12gb/s Sas/sata/pcie (nvme) Tri-mode Raid Controller.
Overview Data Center, Cloud, And High-performance Computing Environments Not Only Require Large Amounts Of Storage Capacity But Must Also Provide The Data Protection, Flexibility, And Performance That Today’s Applications And End-users Demand. The Megaraid 9500 Series Of 12gb/s Sas/sata/pcie (nvme) Gen 4.0 Tri-mode Storage Adapters, With 16 And 8 Ports, Address These Needs By Delivering More Performance And Offering Raid Data Protection For A Range Of High-end Server Storage Applications.
Based On The BROADCOM Sas3916 And Sas3908 Eight-lane Host Pcie To Sas/sata/pcie Raid On Chip (roc) Controller, The 9500 Series Megaraid Adapters Are The First Raid Adapters To Offer Both Pcie Gen 4.0 Host And Pcie Gen 4.0 Storage Interfaces. Pcie Gen 4.0 Enables These Adapters For High Bandwidth By Delivering Twice The Bandwidth And 75% More Iops.
Technical Information:
Port Count: 8 Internal
Connectors: One X8 Sff-8654
Host Interface: X8 Pcie Gen 4.0
Storage Interface: 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Raid On Chip Controller (roc): Sas3808
Max Devices Per Controller: Sas/sata: 63 Nvme: 4
Raid Levels: 0, 00, 1, 10
Raid Features:
- Automatic Rebuild
- Enclosure Affinity
- Emergency Sata Hot Spare For Sas Arrays
- Ses (inband)
- Sgpio (sideband)
- Universal Backplane Management (ubm) Ready
Management Utilities:
Os Support: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.
Dimensions: 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Typical Power: 6.0w
Operating Conditions:
Operating Voltage 12v ±8%, 3.3v ±9%
Mtbf (calculated) >3,000,000 Hours At 40°c
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | RAID CONTROLLER |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | BROADCOM |
