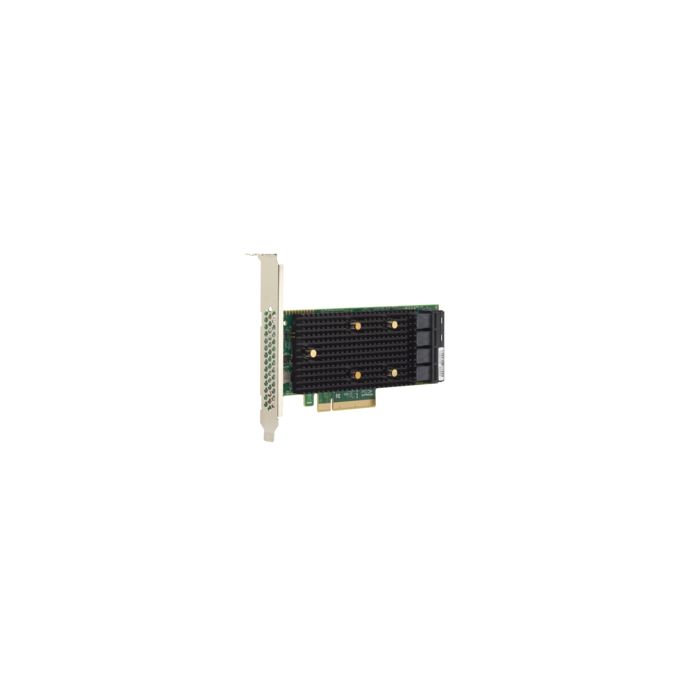

Broadcom 9500-16I 16-Port Int 12Gb/s SAS/SATA/PCIE (NVMe) Tri-Mode HBA
Part Number:
9500-16I
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Connects Up To 1024 Sas/sata Devices Or 32 Nvme Devices
Provides Maximum Connectivity And Performance For High-end Servers And Applications
Support Critical Applications With The Bandwidth Of Pcie 4.0 Connectivity
Universal Bay Management (ubm) Ready
Key Features
Port Count 16 Internal
Connectors Two X8 Sff-8654
Host Interface X8 Pcie Gen 4.0
Storage Interface 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Management Utilities
Lsi Storage Authority (lsa)
Storcli (command-line Interface)
Hii (uefi Human Interface Infrastructure)
Os Support Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.
Dimensions 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Operating Conditions
Operating: 0°c To 55°c, 5% To 90% Non-condensing
Storage: -45°c To +105°c, 5% To 95% Non-condensing.
Typical Power 8.9w
Operating Voltage 12v ±8%, 3.3v ±9%
Mtbf (calculated) > 5,000,000 Hours At 40°c
Condition :new Factory Sealed.
Availability :in Stock.
Our Warranty : 90 Days.
BROADCOM 9500-16I 16-port Int 12gb/s Sas/sata/pcie (nvme) Tri-mode Hba.
Overview The High-port 9500-16I Tri-mode, Pcie Gen 4.0 Hba Is Ideal For Increased Connectivity And Maximum Performance For Enterprise Data Center Flexibility.
With Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9500-16I Adapter Delivers The Performance And Scalability Needed By Critical Applications.
Key Features
Port Count 16 Internal
Connectors Two X8 Sff-8654
Host Interface X8 Pcie Gen 4.0
Storage Interface 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Management Utilities
Os Support Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.
Dimensions 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Operating Conditions
Typical Power 8.9w
Operating Voltage 12v ±8%, 3.3v ±9%
Mtbf (calculated) > 5,000,000 Hours At 40°c
Condition :new Factory Sealed.
Availability :in Stock.
Our Warranty : 90 Days.
| Capacity | HOST BUS ADAPTER |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | BROADCOM |
