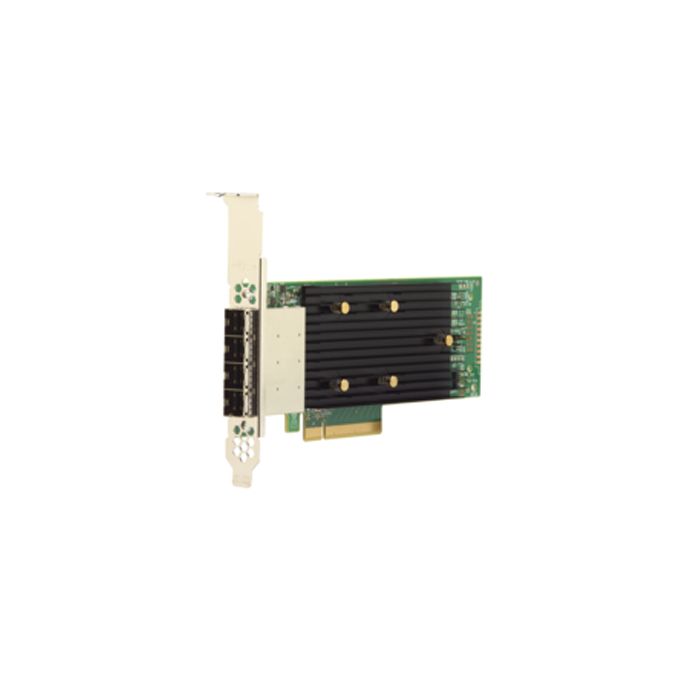

Broadcom 9400-16E 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe HBA
Part Number:
9400-16E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Connects Up To 1024 Sas/sata Devices.
Provides Maximum Connectivity And Performance For High-end Servers And Applications.
Support Critical Applications With The Bandwidth Of Pcie® 3.1 Connectivity.
Ideal For Connecting Large-scale External Storage Enclosures.
Specifications
Host Bus Type X8 Lane Pci Express 3.1
Devices Supported Sas/sata: 1024
External Connectors 4 Mini-sas Hd Sff8644
Operating Temperature 10° To 55° C
Operating Voltage +12v +/-8%, 3.3v +/-9%
Os Support Microsoft Windows, Linux, Vmware.
Pci Power Typical: 11.18w
Cable Support Passive Copper, Active Copper, Active Optical
I/o Controller Sas3416
Mtbf > 4,500,000 Hours At 40° C
Operating Humidity 20% To 80% Non-condensing
Data Transfer Rates 12gb/s Sas-3 Compliant
Physical Dimensions 6.600 X 2.712
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
BROADCOM 9400-16E 12gb/s Sas/sata/nvme Tri-mode Pcie Hba.
Overview
Designed For Large-scale External Storage Enclosures, The 9400-16E Tri-mode Storage Adapter Is Ideal For Increased Connectivity And Maximum Performance For Data Center Flexibility.
With Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9400-16E Adapter Delivers The Performance And Scalability Needed By Critical Applications.
Specifications
Host Bus Type X8 Lane Pci Express 3.1
Devices Supported Sas/sata: 1024
External Connectors 4 Mini-sas Hd Sff8644
Operating Temperature 10° To 55° C
Operating Voltage +12v +/-8%, 3.3v +/-9%
Os Support Microsoft Windows, Linux, Vmware.
Pci Power Typical: 11.18w
Cable Support Passive Copper, Active Copper, Active Optical
I/o Controller Sas3416
Mtbf > 4,500,000 Hours At 40° C
Operating Humidity 20% To 80% Non-condensing
Data Transfer Rates 12gb/s Sas-3 Compliant
Physical Dimensions 6.600 X 2.712
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 16PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | BROADCOM |
