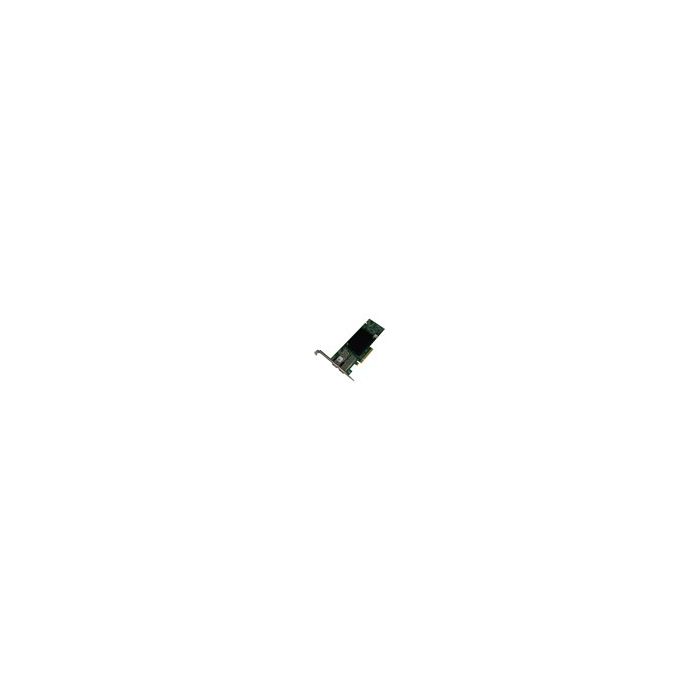

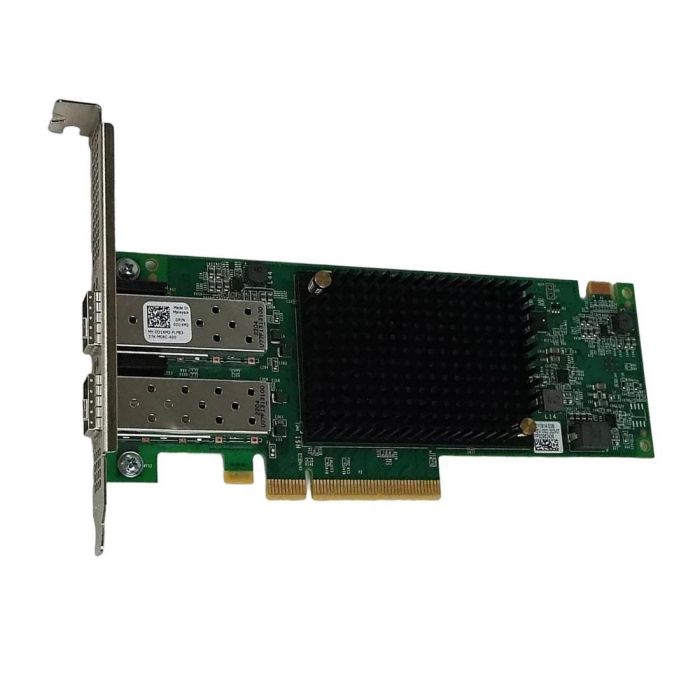

Dell 540-BDNN Emulex 2 Port 64GFC Short Wave Optical LC SFP+ Host Bus Adapter

DELL 540-BDNN Emulex 2 Port 64gfc Short Wave Optical Lc Sfp+ Host Bus Adapter

Overview Applications Continue To Grow In Size And Scale And, To Support Them, Enterprises Are Increasingly Turning To New Server Technologies That Contain Hundreds Of Processor Cores As Well As High-performance Storage Solutions Including Low-latency Nvme All-flash Arrays (afas). Nvme Can Significantly Increase The Performance Of Storage Area Networks (sans), Making The Selection Of High-speed Networking Technology The Critical Element For Achieving Maximum System-wide Performance.

Specifications

Physical Dimensions Short, Low Profile Pcie Card, 167.64mm X 68.91mm (6.60 X 2.71)

Ports 2

Ecd Cable Support 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om4 Mmf, 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om5 Mmf, 0.5m To 70m At 64gfc/32gfc On 50/125 Μm Om3 Mmf, 10 Km At 32gfc/16gfc On 9/125 Μm Singlemode Fiber When Emulex Approved Longwave Transceivers Are Used


Os Support Additional Support Is Available From Oems And Partners, Microsoft Windows, Oracle Linux, Oracle Linux With The Unbreakable Enterprise Kernel (uek), Oracle Solaris, Red Hat Enterprise Linux, Suse® Linux Enterprise Server, Vmware Vsphere, Openeuler

Generation Gen 7 (64/32gfc)

Hardware Environment Amd, Intel X64, Amd, Intel X86, Armv8 64-bit, Powerpc

Host Bus Type Pcie Gen4 X8

Industry Standards Fc-da, Fc-da-2, Fc-fs, Fc-fs-3, Fc-fs-4, Fc-fs-5, Fc-gs-2/3/4/5, Fc-gs-6, Fc-gs-7, Fc-ls-2, Fc-ls-3, Fc-ls-5 Incits 569-202x Rev 5.0, Fc-mi, Fc-nvme, Fc-nvme/am1, Fc-ph, Fc-ph-2, Fc-ph-3, Fc-pi, Fc-pi-2, Fc-pi-3, Fc-pi-4, Fc-pi-5, Fc-pi-6, Fc-pi-7, Fc-tape, Fcp-2/3, Fcp-4, Sbc-3, Spc-3, Spc-4, Ssc-2, Ssc-3, Ssc-4

I/o Controller Xe601

Operating Humidity 5% To 95% Non-condensing

Operating Temperature [c°] 0°c To 55°c

Optical Data Rates 64gfc (28.9 Gbaud Pam4), 32gfc (28.05 Gbaud Nrz), 16gfc (14.025 Gbaud Nrz), Automatically Detected

Optics Optics Short Wave Lasers With Lc Type Connector Optics

Storage Temperature -20° To 85°c (-4° To 185°f)

Regulatory Certifications Australia (rcm Class A), Bsmi Rohs Compliant, China Rohs Compliant, Eu (low Voltage Directive), Europe Ce Mark, Europe Eu Rohs Compliant, Japan(vcci Class A), Korea (kcc Class A), North America (fcc/ices Class A, Ul/csa Recognized), Taiwan Bsmi Class A, Ukca Mark

Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
