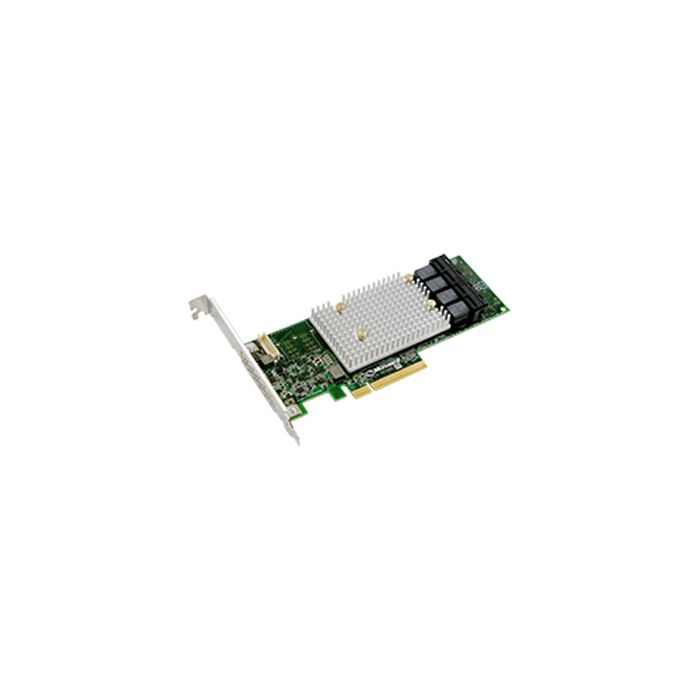

Adaptec 2295000-R 3154-16I 12 Gbps PCIe Gen3 SAS/SATA SmartRAID Adapter with 16 Internal Native Ports and LP/MD2 Form Factor Does Not Include Cables
Part Number:
2295000-R
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Maxcache 4.0 Caching Software (all Smartraid 315x Products With Cache Protection)
Mixed Mode Allows To Use Raid And Hba Devices Simultaneously
Adapter Dynamic Power Management To Save Up To 30% Power
Supports Up To 256 Sas Or Sata Devices Using Sas Expanders
Support For Native 4k Sector Sas And Sata Devices In Addition To 512-byte Sector Devices
Triple Mirroring, Move Array, Split Mirroring
Raid Advanced Data Management
Quick Initialization
Online Capacity Expansion
Copyback Hot Spare
Dynamic Caching Algorithm
Native Command Queuing (ncq)
Background Initialization
Hot-plug Drive Support
Raid Level Migration
Hot Spares—global, Dedicated, And Pooled
Automatic/manual Rebuild Of Hot Spares
Ses And Saf-te Enclosure Management
Configurable Stripe Size
S.m.a.r.t. Support
Bmc Support
Dynamic Sector Repair
Staggered Drive Spin-up
Bootable Array Support
Support For Tape Devices, Autoloaders
Msi-x Support For All Device Drivers For All Supported Operating Systems
Secure Boot Support For The Uefi Host Bios
Usb Image Available On Storage.microsemi.com/en-us/support/start To Boot Maxview Gui From Any Usb Device For Enhanced Gui-based Setup And Offline Maintenance.
Management Utilities
Maxview Storage Manager:
Web-based Gui Management Utility
Os Support: Windows, Linux, Solaris, Vmware
Remote Configuration, Monitoring, And Notification
Remote Firmware Updates
Smi-s
Smtp
Arcconf
Command-line Interface
Smi-s Support For Vmware
Bios Configuration Utility (ctrl+a)
Legacy Configuration Utility
Flashable Bios Support
Uefi Bios Configuration Utility
Hii-based Configuration Utility
Flashable Bios Support
Event Monitor
Lightweight Event Monitoring And Logging Tool
Distributes Adapter Events And Notifies User
Cache 4 Gb Ddr4/2100 Mhz
Operating Systems Microsoft Windows, Red Hat Linux, Suse Linux, Fedora, Debian Linux, Ubuntu Linux, Sun Solaris, Freebsd, Vmware Esxi. The Latest Drivers Are Available At Storage.microsemi.com/en-us/support/start. Supports Open-source Linux Drivers And Inbox Drivers.
Dimensions: 2.535 H × 6.6 L (64 Mm × 167 Mm)
Operating Current : Tbd
Environmental Compliance: Rohs
Mtbf: 1.7 Million Hours, Measured At 40 °c
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
ADAPTEC 2295000-R 3154-16i 12 Gbps Pcie Gen3 Sas/sata Smartraid Adapter With 16 Internal Native Ports And Lp/md2 Form Factor Does Not Include Cables.
Technical Specifications
Ports: 16 Internal
Connectors: 4 X Sff-8643
Maxcache 4.0 : Yes
Cache Protection: Yes, Integrated
Package Contents: Smartraid 3154-16i Adapter With Integrated Flash Backup, Additional Low Profile Vented Bracket.
Raid Levels: 0, 1, 5, 6, 50, 60, 1 Adm, 10 Adm
Form Factor : Md2-low Profile
Bus Interface : 8-lane Pcie Gen3
Processor : 12 Gbps Roc
Key Software Features:
Management Utilities
Maxview Storage Manager:
Arcconf
Bios Configuration Utility (ctrl+a)
Uefi Bios Configuration Utility
Event Monitor
Cache 4 Gb Ddr4/2100 Mhz
Operating Systems Microsoft Windows, Red Hat Linux, Suse Linux, Fedora, Debian Linux, Ubuntu Linux, Sun Solaris, Freebsd, Vmware Esxi. The Latest Drivers Are Available At Storage.microsemi.com/en-us/support/start. Supports Open-source Linux Drivers And Inbox Drivers.
Dimensions: 2.535 H × 6.6 L (64 Mm × 167 Mm)
Operating Current : Tbd
Environmental Compliance: Rohs
Mtbf: 1.7 Million Hours, Measured At 40 °c
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | RAID CONTROLLER |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | ADAPTEC |
