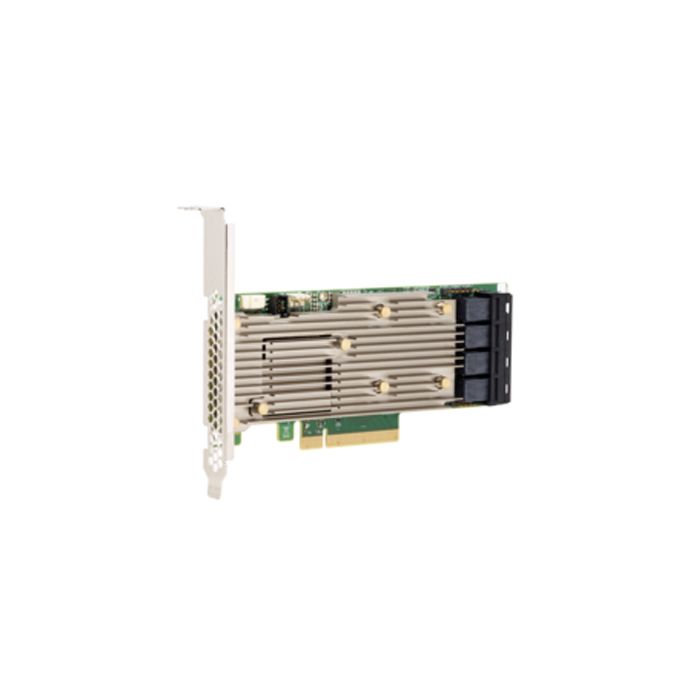

Broadcom 05-50011-00 9460-16I 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe RAID Controller F/s
Part Number:
05-50011-00
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Connect Up To 255 Sas/sata Devices Or 24* Nvme Devices Per Controller
Fits Into Rack-mounted Servers With Low-profile Form Factor And Side-mounted Sas Connectors
Support Critical, High-bandwidth Applications With Pcie® 3.1 Connectivity
Balance Protection And Performance For Critical Applications With Raid Levels 0, 1, 5, 6, 10, 50, And 60
Add More Protection And Peace Of Mind With Cachevault® Flash Cache Protection.
Specifications
Physical Dimensions Low Profile 6.127” X 2.712”
Cache Protection Cachevault Cvpm05
Host Bus Type X8 Lane Pci Express® 3.1
Cache Memory 4gb 2133 Mhz Ddr4 Sdram
Raid Management Software Lsi Storage Authority (lsa), Storcli (command-
line Interface), Hii (uefi Human Interface Infrastructure).
Internal Ports 16
Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant.
Devices Supported Sas/sata: 255, Nvme: 4 X4, Up To 24 X2 Or X4*
Internal Connectors 4 Mini-sas Hd X4 Sff-8643
Operating Temperature 10° To 55° C
Operating Voltage(v) +12v +/-8%, 3.3v +/-9%
Os Microsoft Windows. Contact Oracle Support For Oracle Solaris Driver
or Software Support. See WWW.BROADCOM.COM/SUPPORT/DOWNLOAD-SEARCH For Details On Versions.
I/o Processor/sas Controller Sas3516 Dual-core Raid-on-chip (roc).
Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days.
BROADCOM 05-50011-00 9460-16i 12gb/s Sas/sata/nvme Tri-mode Pcie Raid Controller.
Overview Data Center, Cloud And High-performance Computing Environments Not Only Require Large Amounts Of Storage Capacity, They Also Must Provide The Data Protection, Flexibility And Performance Today’s Applications And End Users Demand. The Megaraid 9460-16i Tri-mode Storage Adapter Is A 12gb/s Sas/sata/pcie (nvme) Controller Card That Addresses These Needs By Delivering Proven Performance And Raid Data Protection For A Range Of High-end Server Storage APPLICATIONS.
BROADCOM’S Tri-mode Serdes Technology Enables The Operation Of Nvme, Sas Or Sata Devices In A Single Drive Bay, Allowing For Endless Design Flexibility.
Specifications
Physical Dimensions Low Profile 6.127” X 2.712”
Cache Protection Cachevault Cvpm05
Host Bus Type X8 Lane Pci Express® 3.1
Cache Memory 4gb 2133 Mhz Ddr4 Sdram
Raid Management Software Lsi Storage Authority (lsa), Storcli (command-
line Interface), Hii (uefi Human Interface Infrastructure).
Internal Ports 16
Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant.
Devices Supported Sas/sata: 255, Nvme: 4 X4, Up To 24 X2 Or X4*
Internal Connectors 4 Mini-sas Hd X4 Sff-8643
Operating Temperature 10° To 55° C
Operating Voltage(v) +12v +/-8%, 3.3v +/-9%
Os Microsoft Windows. Contact Oracle Support For Oracle Solaris Driver
or Software Support. See WWW.BROADCOM.COM/SUPPORT/DOWNLOAD-SEARCH For Details On Versions.
I/o Processor/sas Controller Sas3516 Dual-core Raid-on-chip (roc).
Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | 16PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | BROADCOM |
