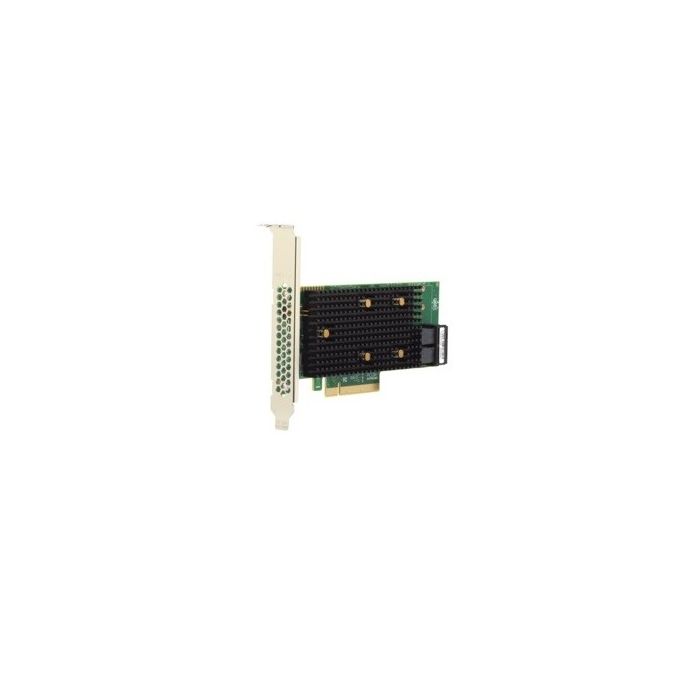

LSI LOGIC 05-50008-01 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe HBA
Part Number:
05-50008-01
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Connects Up To 1024 Sas/sata Devices Or 24* Nvme Devices
Provides Maximum Connectivity And Performance For High-end Servers And Applications
Support Critical Applications With The Bandwidth Of Pcie® 3.1 Connectivity
Specifications
Host Bus Type: X8 Lane Pci Express® 3.1
Devices Supported: Sas/sata: 1024, Nvme: 24
Internal Connectors: 2 Hd Mini-sas Sff8643 (horizontal Mount)
Internal Ports: 8
Operating Temperature: 10° To 55° C
Operating Voltage: +12v +/-8%, 3.3v +/-9%
Os Support: Microsoft Windows, Linux, Vmware.
Pci Power: Typical: 10.05w
Cable Support: Passive Copper
I/o Controller: Sas3408
Mtbf: > 4,500,000 Hours At 40° C
Operating Humidity 20% To 80% Non-condensing
Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days.
Broadcom 05-50008-01 12gb/s 8-port Internal Sas/sata/nvme X8 Lane Pci Express 3.1 Tri-mode Host Bus Adapter
Overview
Designed For High-end Servers Utilizing Internal Storage, The 9400-8i Tri-mode Storage Adapter Is Ideal For Increased Connectivity And Maximum Performance For Data Center Flexibility. With Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9400-8i Adapter Delivers The Performance And Scalability Needed By Critical Applications.
Specifications
Operating Humidity 20% To 80% Non-condensing
Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | HOST BUS ADAPTER |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | LSI LOGIC |
