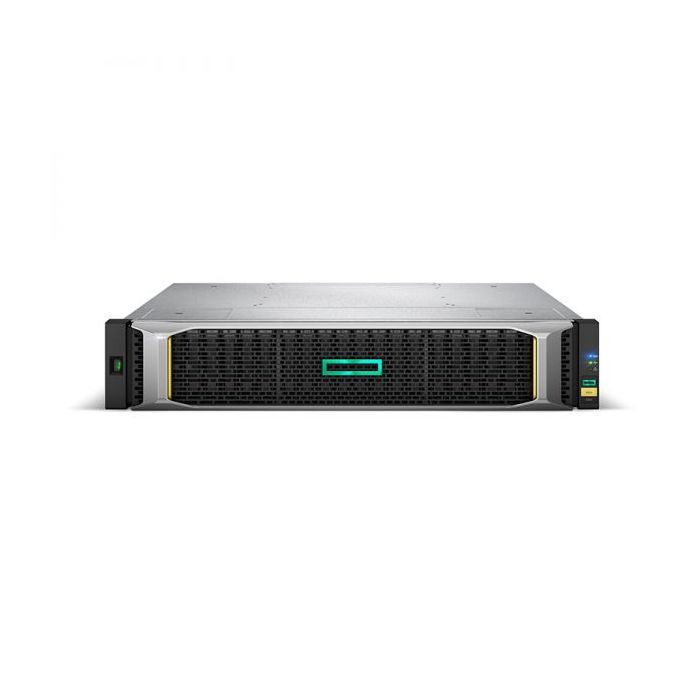

HPE Q1J32A Modular Smart Array 2050 SAS NEBS SFF Storage hard drive array

Primary Information:
Product Description: HPE Modular Smart Array 2050 Sas Nebs Sff Storage - Hard
Drive Array
Device Type: Hard Drive Array
Enclosure Type: Rack-mountable - 2u
Max Supported Capacity: 76.8 Tb
Maximum Luns: 512
Installed Devices / Modules Qty: 0 (installed) / 24 (max)
Supported Drives: Sas-3
Storage Controller: Raid (sas 12gb/s) - Raid 0, 1, 3, 5, 6, 10, 50
Storage Controller Quantity: 2
Os Required: HP-UX, Suse Linux, Apple Macos X, Microsoft Windows, Red Hat Enterprise Linux, HP Openvms, Microsoft Windows Server 2012, Vmware Esxi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 With Hyper-v, Vmware Esxi 6.x
Power: Dc -40 -75 V
Power Redundancy: Yes
Pricing Type: Remarketed
Dimensions (wxdxh): 17.6 In X 19.5 In X 3.5 In
Weight: 40.56 Lbs
Environmental Standards: Energy Star Qualified

General Information:
Device Type: Hard Drive Array
Enclosure Type: Rack-mountable - 2u

Chassis:
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 24
Supported Drives: Sas-3

Storage:
Max Supported Capacity: 76.8 Tb
Maximum Luns: 512

Storage Controller:
Type: Raid
Installed Qty: 2
Interface Type: Sas 12gb/s
Data Transfer Rate: 1.2 Gbps
Raid Level: Raid 0, Raid 1, Raid 3, Raid 5, Raid 6, Raid 10, Raid 50

Storage Controller (2nd)
Installed Qty: 2

Expansion / Connectivity:
Expansion Bays: 24 (total) / 24 (free) - 2.5 Sff
Interfaces: 8 X Sas 12gb/s ¦ 2 X Mini-usb 2.0 (management) ¦ 2 X Ethernet 1000base-t (management) - Rj-45

System Requirements:
Os Required: HP-UX, Suse Linux, Apple Macos X, Microsoft Windows, Red Hat Enterprise Linux, HP Openvms, Microsoft Windows Server 2012, Vmware Esxi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 With Hyper-v, Vmware Esxi 6.x

Miscellaneous:
Features: Systems Insight Manager (sim)
Compliant Standards: Cispr 22 Class A, Cispr 24, Gs, En55022 Class A, Ccc, Ices-003 Class A, Iec 60950-1, En 60950-1, Weee, Rohs, Nebs, Can/csa C22.2 No. 60950-1-03, Vcci Class A, Kn24, K60950-1, Kn22 Class A, China Rohs, As/nzs Cispr 22, En61000-3-2, En61000-3-3, En 55024 Class A, Cns 13438 Class A

Environmental Standards:
Energy Star Certified: Yes

Power:
Power Device: 2 X Internal Power Supply - Hot-plug
Max Supported Qty: 2
Power Redundancy: Yes
Voltage Required: Dc -40 -75 V
Power Consumption Operational: 432 Watt

Dimensions & Weight:
Width: 17.6 In
Depth: 19.5 In
Height: 3.5 In

Environmental Parameters:
Min Operating Temperature: 41 °f
Max Operating Temperature: 104 °f
Humidity Range Operating: 10 - 90% (non-condensing)
Sound Emission: 55 Dba

Condition: New Cto.
Availability: In Stock.
Our Warranty: 90 Days.
