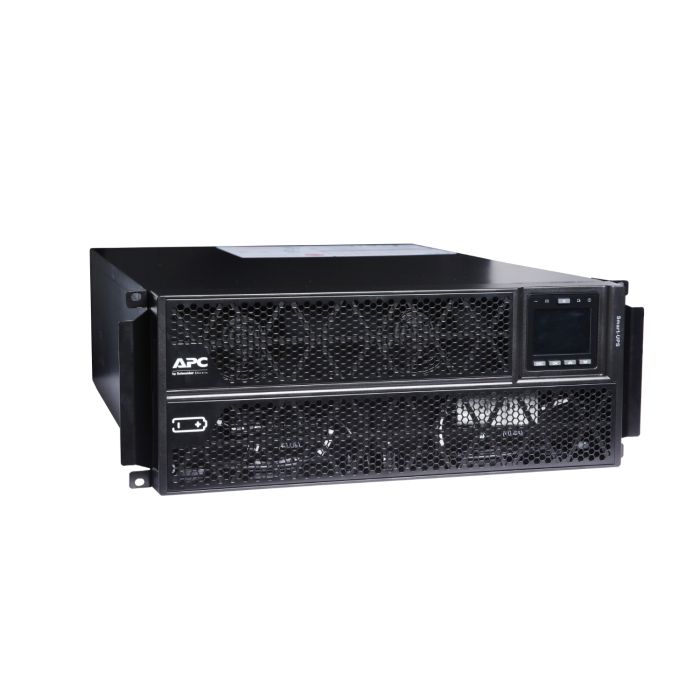

APC SRTG6KXLI uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 3 AC outlet(s)
Part #:
SRTG6KXLI
Availability:
In Stock
Price:
Excl VAT:
AED
12,048.00
Incl VAT:
AED
12,650.40
The Smart-UPS On-Line family from APC by Schneider Electric offers high-density, online double-conversion power protection for servers, voice and data networks, medical labs, and light industrial applications. Smart-UPS On-Line is available in sizes ranging from 2U to 12U and is capable of supporting loads between 1kVA and 20kVA. Recent series expansions at 15 and 20 kVA allow for the support of power-hungry blade servers and highly loaded equipment racks. When business-critical systems require runtime measured in hours rather than minutes, Smart-UPS On-Line can be equipped with corresponding battery packs to meet stringent runtime requirements.
| Power | |
|---|---|
| Output power | 6000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Output power capacity | 6 kVA |
| ECO mode | Yes |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| LED indicators | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 6000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 6 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery voltage | 96 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Compact |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, EN/IEC 62040-1 |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2011 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Weight & dimensions | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 275 mm |
| Weight | 51.9 kg |
| Width | 440 mm |
| Package weight | 59 kg |
| Height | 178 mm |
| Depth | 620 mm |
| Packaging data | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 275 mm |
| Package weight | 59 kg |
| Certificates | |
| Certification | CE, EN/IEC 62040-1 |
| SKU | SRTG6KXLI |
|---|---|
| Manufacturer | APC |
