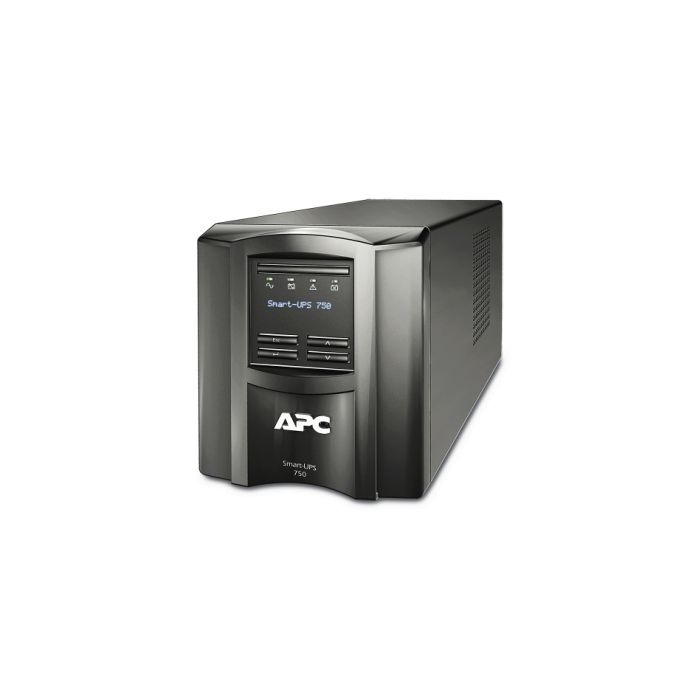

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 6 AC outlet(s)
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
| Power | |
|---|---|
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 98% |
| Emergency Power Off (EPO) | O |
| Ports & interfaces | |
| Cable length | 1.83 m |
| USB port | Yes |
| SmartSlot | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 2 |
| Performance | |
| Hold time (min) | 4 ms |
| Hold time (max) | 8 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Status |
| Surge protection | Yes |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Features | |
| Hold time (min) | 4 ms |
| Hold time (max) | 8 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 98% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | O |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 146 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 15.8 min |
| Typical backup time at full load | 4.6 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| LED indicators | Status |
| Product colour | Black |
| Display | LCD |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Cable length | 1.83 m |
| RoHS compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 13.2 kg |
| Width | 138 mm |
| Height | 157 mm |
| Depth | 358 mm |
| Package width | 278 mm |
| Package depth | 499 mm |
| Package height | 301 mm |
| Package weight | 14.2 kg |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | RS-232,USB cable |
| Software CD | Yes |
| Package width | 278 mm |
| Package depth | 499 mm |
| Package height | 301 mm |
| Package weight | 14.2 kg |
| Logistics data | |
| Quantity per pallet | 24 pc(s) |
| Certificates | |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| RoHS compliance | Yes |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | RS-232,USB cable |
| Software CD | Yes |
| SKU | SMT750I |
|---|---|
| Manufacturer | APC |
