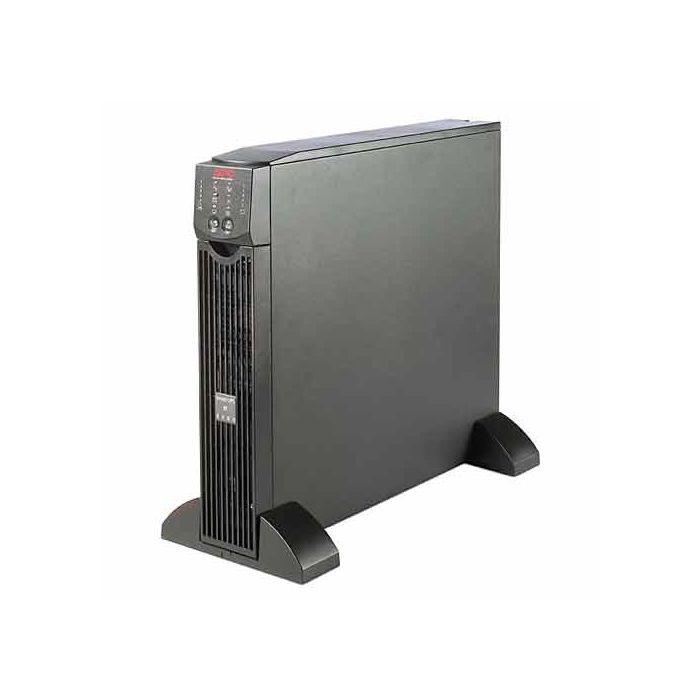

APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 1000 VA 700 W 6 AC outlet(s) EOL
Availability
Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Cold-start capable: Provides temporary battery power when the utility power is out.
Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
Manageability
Network manageable: Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA).
SmartSlot: Customize UPS capabilities with management cards.
Audible alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators: Enables quick understanding and response to visual indicators showing UPS status.
Serial Connectivity: Provides management of the UPS via a serial port.
Disconnected battery notification: Warns when a battery is not available to provide backup power.
InfraStruXure Manager compatible: Enables centralized management via the APC InfraStruXure® Manager.
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 420 J |
| Efficiency | 89.1% |
| Emergency Power Off (EPO) | O |
| Crest factor | 3:1 |
| Output power capacity | 1000 VA |
| Performance | |
| Audible alarm modes | Low battery alarm,Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Battery replacement |
| Surge protection | Yes |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Audible alarm modes | Low battery alarm,Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Output power | 700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 420 J |
| Efficiency | 89.1% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | O |
| Noise level | 50 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 1000 VA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 2 |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 328 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 32 min |
| Typical backup time at full load | 13.8 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Battery replacement |
| Product colour | Black |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE, REACH, PEP, EOLI |
| RoHS compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 23 kg |
| Width | 85 mm |
| Height | 432 mm |
| Depth | 483 mm |
| Package width | 630 mm |
| Package depth | 594 mm |
| Package height | 286 mm |
| Package weight | 27.8 kg |
| Packaging data | |
| Cables included | RS-232 |
| Manual | Yes |
| Software CD | Yes |
| Package width | 630 mm |
| Package depth | 594 mm |
| Package height | 286 mm |
| Package weight | 27.8 kg |
| Logistics data | |
| Quantity per master carton | 1 pc(s) |
| Quantity per pallet | 6 pc(s) |
| Certificates | |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE, REACH, PEP, EOLI |
| RoHS compliance | Yes |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Cables included | RS-232 |
| Manual | Yes |
| Software CD | Yes |
| SKU | SURT1000XLI |
|---|---|
| Manufacturer | APC |
