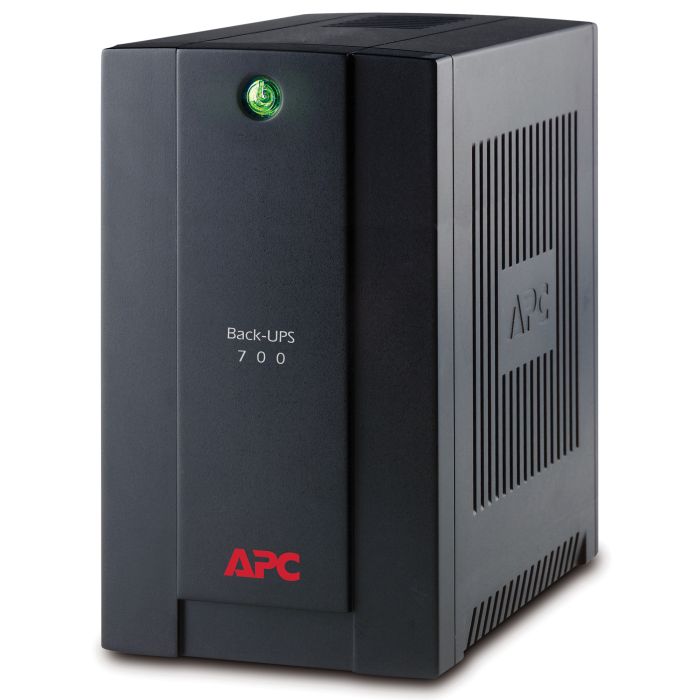

APC Back-UPS uninterruptible power supply (UPS) Line-Interactive 700 VA 390 W 4 AC outlet(s) EOL
Part Number:
BX700UI
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 390 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Surge energy rating | 273 J |
| Efficiency | 96.6% |
| Output power capacity | 0.7 kVA |
| Ports & interfaces | |
| Cable length | 1.22 m |
| USB port | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 1 |
| Performance | |
| Hold time (max) | 4 ms |
| Audible alarm modes | Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Battery replacement |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Hold time (max) | 4 ms |
| Audible alarm modes | Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 390 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Surge energy rating | 273 J |
| Efficiency | 96.6% |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 0.7 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 81 VAh |
| Number of batteries supported | 1 |
| Battery voltage | 12 V |
| Battery capacity | 7.2 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 6 h |
| Typical backup time at half load | 8.7 min |
| Typical backup time at full load | 1.3 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| LED indicators | Battery replacement |
| Product colour | Black |
| Certification | REACH |
| Cable length | 1.22 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 9000 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 295 mm |
| Package depth | 340 mm |
| Package height | 275 mm |
| Weight | 6 kg |
| Width | 115 mm |
| Package weight | 6.5 kg |
| Height | 200 mm |
| Depth | 256 mm |
| Packaging data | |
| Manual | Yes |
| Package width | 295 mm |
| Package depth | 340 mm |
| Package height | 275 mm |
| Bundled software | PowerChute Personal Edition |
| Package weight | 6.5 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | REACH |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Manual | Yes |
| Bundled software | PowerChute Personal Edition |
