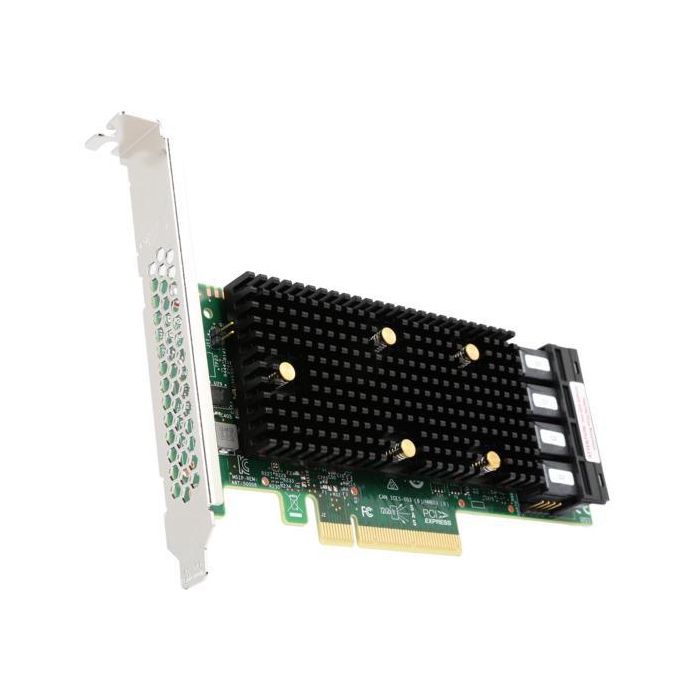

Broadcom 05-50008-00 9400-16i 16-port Tri-Mode PCIe 12Gb/s HBA

BROADCOM 05-50008-00 9400-16i 12gb/s Sas/sata/nvme Tri-mode Pcie Hba

overview

designed For High-end Servers Utilizing Internal Storage, The 9400-16i Tri-mode Storage Adapter Is Ideal For Increased Connectivity And Maximum Performance For Data Center Flexibility.

with Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9400-16i Adapter Delivers The Performance And Scalability Needed By Critical Applications.

• Connects Up To 1024 Sas/sata Devices Or 24* Nvme Devices

• Provides Maximum Connectivity And Performance For High-end Servers And Applications.

• Support Critical Applications With The Bandwidth Of Pcie® 3.1 Connectivity

specifications

host Bus Type X8 Lane Pci Express® 3.1

devices Supported Sas/sata: 1024, Nvme: 24

internal Connectors 4 Mini-sas Hd X4 Sff-8643

internal Ports 16

operating Temperature 10° To 55° C

operating Voltage +12v +/-8%, 3.3v +/-9%

os Support Microsoft Windows, Linux, Vmware.

pci Power Typical: 11.95w

cable Support Passive Copper

i/o Controller Sas3416

mtbf > > 4,500,000 Hours At 40° C

operating Humidity 20% To 80% Non-condensing

data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant

physical Dimensions Low Profile 6.127” X 2.712”

condition: Refurbished.
availability: In Stock.
our Warranty: 90 Days.
